HVAC Drawings for an Ontario Building Permit

A residential building permit application in Ontario that includes new heating or cooling work generally needs several core HVAC documents, though the exact list depends on the project and the municipality reviewing it. These typically include a heat loss and heat gain calculation prepared to CSA F280-12, duct or hydronic layout drawings that show equipment placement and distribution, mechanical ventilation design documentation, and a signed Schedule 1: Designer Information form. Larger or more complex projects sometimes add an equipment schedule, an Energy Efficiency Design Summary under SB-12, or duct design detail drawings, depending on what the local building department expects. Ontario Building Code Part 9 sets the baseline for houses and small buildings, though municipal submission requirements and review practices can differ even where the underlying provincial code requirements are the same. Homeowners sometimes assume a furnace quote and a duct sketch will satisfy a building official, and that assumption is a common reason applications get returned for missing information.

The table below sets out the core and supplementary HVAC design documents a permit reviewer may ask for, along with who typically prepares each one and the code reference it ties back to:

The sections that follow explain what each document needs to contain and who is allowed to prepare it. Where municipal practice tends to diverge from the code minimum is noted along the way rather than saved for a separate section.

CSA F280-12 Heat Loss and Heat Gain Calculations

Section 9.33.2.2 of the Ontario Building Code requires that heating and cooling equipment capacities be determined in accordance with CSA F280-12, the Canadian standard for residential heat loss and heat gain calculation. The method works room by room. It weighs the area of walls and windows against their assigned insulation values, and ceiling and floor assemblies are treated the same way. Air leakage through the building envelope and the outdoor design temperature for the specific municipality complete the picture.

As an illustrative example, outdoor design temperatures in parts of Southern Ontario often fall in the minus 20 to minus 25 degree Celsius range, though the applicable figure for any given project comes from the code’s climatic data tables for that specific location and is not something a designer selects. As an example only, and not a substitute for a project-specific calculation, a two storey home of about 2,200 square feet in the Greater Toronto Area might show a calculated heating load somewhere in the 35,000 to 45,000 BTU per hour range. The actual figure for any home depends heavily on its envelope, glazing, and air leakage, and it can vary widely even among homes of similar size. A square-footage rule of thumb is not a substitute for the required calculation. The report should be produced using software capable of implementing the CSA F280 methodology, based on the project’s actual drawings and building assemblies, and stamped by a qualified designer.

HVAC Duct Design Drawings for an Ontario Building Permit

Once the heating and cooling loads are known, the duct or hydronic layout drawing translates that number into a physical distribution system. This drawing shows where the heating and cooling equipment will sit. It also sets out the size of the main trunk duct and each branch running off it, plus the location of every supply register and return grille. Reviewers check that duct sizing tracks the load calculated for each room. A flat size applied uniformly across the whole house does not pass review, and return air paths need to suit the equipment selected. For example, Toronto requires HVAC drawings to be produced on standardized sheet sizes, drawn to scale, fully dimensioned, and signed and dated; other municipalities may follow different submission conventions, so this should be confirmed locally. A larger custom home with zoned systems or a mix of forced air and radiant floor heating typically needs separate duct design detail drawings, showing branch takeoffs and transitions along with equipment clearances at a larger scale.

MVDS and Mechanical Ventilation Requirements for Ontario Permits

Mechanical ventilation documentation, often summarized in a Mechanical Ventilation Design Summary, is now expected for new homes under the current ventilation provisions of Part 9.32 of the Ontario Building Code, where earlier code cycles left ventilation documentation to vary more by municipality. The MVDS needs to identify the ventilation system installed and its design airflow. It also needs to show the intended supply and exhaust arrangement, along with the equipment’s rated performance, and how fresh air reaches bedrooms and other habitable spaces. Two things get conflated fairly often here. The airflow a unit is capable of delivering under test conditions is not automatically the airflow the code requires for a given home, since the required rate depends on floor area, bedroom count, and the specific ventilation provisions that apply to the project. A heat loss report submitted without accompanying ventilation design documentation may not satisfy the mechanical documentation requirements for a permit application, particularly where a municipality specifically asks for ventilation design as a separate item.

BCIN HVAC-House Qualification for Ontario Building Permits

HVAC design documents prepared by a qualified designer must identify the designer and the applicable qualification information required by the permit process, including the BCIN registration number and qualification identification number, along with an original signature. For residential projects, the relevant qualification category is Building Services, HVAC-House, held either by a BCIN registered designer or by a licensed professional engineer. This qualification category is intended for HVAC design activities associated with houses that fall within the applicable Part 9 scope. Projects outside that scope may require a different qualification category or professional engineering involvement, depending on the building’s classification, size, and the complexity of the design. Architects and engineers are exempt from BCIN registration under their own licensing bodies. Certain owner-builder exemptions may also apply in specific circumstances, though applicants should confirm eligibility with the local building department before relying on one. A company logo alone does not substitute for the required designer identification and declaration information on a submission.

Additional HVAC Documents Ontario Municipalities May Require

The core documents cover the code minimum, but municipal practice varies more than most applicants expect. Toronto’s stand-alone mechanical permit process, for example, asks applicants to confirm the type and location of every piece of equipment, along with its size, as a separate item from the main design package, plus the ventilation calculation itself. Some smaller municipalities will accept a combined heat loss and duct drawing on one sheet for a simple renovation, while others insist on separate documents even for modest projects. An Energy Efficiency Design Summary under SB-12 sometimes gets bundled into the same submission where the project also needs to demonstrate energy compliance, and a handful of building departments ask for a short compliance letter confirming the HVAC design matches what was approved on the architectural drawings. HVAC replacement work is not automatically exempt from permit requirements.

Toronto’s mechanical HVAC permit categories, for example, explicitly include boiler and furnace replacement alongside new air conditioning installations. Permit and documentation requirements for replacement work vary by municipality and by the scope of the change, so confirming with the local building department before work begins is worth doing regardless of how minor the replacement seems.

Conclusion

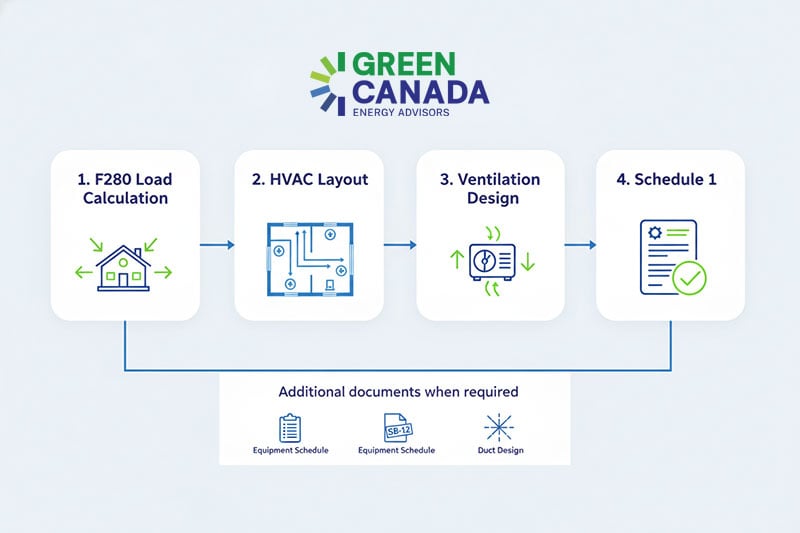

An Ontario HVAC permit package generally rests on the heat loss and heat gain calculation, the duct or distribution drawings that follow from it, mechanical ventilation design documentation, and the Schedule 1: Designer Information form identifying who stands behind the design. Everything else, from equipment schedules to compliance letters, gets added depending on project size and the municipality reviewing the application. Confirming the specific document list with the local building department before drawings are finalized tends to save more time than any other single step in the process, since the code sets the floor and reviewers apply their own expectations on top of it. A BCIN registered designer working from the actual floor plans, with the correct HVAC-House qualification for the project’s scope, gives an application a stronger chance of getting through review without being returned.
