If you’ve been exploring high-performance construction in Canada, you’ve likely come across the term Passive Home— a building standard, a certification process, and increasingly a practical design framework for builders going well beyond what current codes require. At its core, Passive Home— or Passivhaus, its German origin — is a performance-based approach that prioritizes dramatically reducing a home’s heating and cooling demand rather than compensating for heat loss with a larger mechanical system.
What makes Passive Home distinct from other efficiency programs is the rigour of its criteria and the depth of its verification process. Buildings built to the standard can reduce heating and cooling energy use substantially compared with conventional construction — verified through detailed energy modelling and third-party certification, not self-reported. For Canadian homeowners facing cold winters and rising energy costs, that combination of thermal comfort and predictable performance is a compelling reason to understand what certification involves.
What PHI Certification Requires in Practice
Passive Home certification is administered internationally by the Passive Home Institute (PHI) in Germany, with Passive Home Canada supporting builders, designers, and certifiers across the country. (Note: this article focuses on the international PHI standard; some North American projects instead use the regional PHIUS standard, which has its own climate-specific criteria.)
To earn certification, a building must meet specific measurable performance criteria — not a checklist of materials, but outcomes modelled and verified through PHPP (Passive Home Planning Package) and on-site testing.
The core criteria for PHI Classic certification include a space heating demand no greater than 15 kWh/m²/yr, a Primary Energy Renewable (PER) demand not exceeding 60 kWh/m²/yr for the building’s total energy use, airtightness verified at 0.6 ACH50 or lower through pressure testing in both directions, and thermal comfort maintained with no more than 10% of annual occupied hours above 25°C — a criterion shaped by orientation, shading, glazing, and internal heat loads. PHPP is a highly detailed, component-by-component modelling tool, distinct from the HOT2000 software used in Canadian EnerGuide workflows.
PHI also offers two additional classes for buildings that combine Passive Home performance with on-site renewable generation: Plus and Premium, evaluated using the PER system to reflect a future energy supply increasingly based on renewables.
| Certification Level | Heating Demand | PER Demand | On-Site Generation Required |
| Passive Home Classic | ≤ 15 kWh/m²/yr | ≤ 60 kWh/m²/yr | No |
| Passive Home Plus | ≤ 15 kWh/m²/yr | ≤ 45 kWh/m²/yr | Yes (≥ 60 kWh/m²/yr) |
| Passive Home Premium | ≤ 15 kWh/m²/yr | ≤ 30 kWh/m²/yr | Yes (≥ 120 kWh/m²/yr) |
| EnerPHit (retrofit) | ≤ 25 kWh/m²/yr | ≤ 60 kWh/m²/yr | No |
Specific PER thresholds are tied to the version of the PHI criteria in use at the time a project begins certification, so it’s worth confirming current requirements with a PHI-approved certifier at the outset of any project.
The Five Design Principles That Drive Passive Home Performance
Passive Home performance doesn’t come from a single product or system — it comes from the disciplined application of five interconnected building science principles throughout design and construction. In Canadian climate zones, where heating loads are high and freeze-thaw conditions affect durability, each requires careful detailing:
- Continuous thermal envelope with high insulation on all six sides, minimizing discontinuities, verified through whole-assembly effective R-value calculations
- High-performance windows and doors, typically triple-pane with thermally broken frames, oriented to manage solar gain without overheating
- Thermal bridging minimized at all framing junctions, slab edges, balconies, and penetrations, addressed through junction-level analysis
- Mechanical ventilation with heat recovery (HRV or ERV), delivering continuous filtered fresh air while recovering heat from exhaust, with performance depending on equipment and climate zone
- Airtight construction verified at 0.6 ACH50 or lower, maintained through a continuous air barrier system across all assemblies and penetrations
In Canada’s cold-climate zones — including prairie and northern regions — the first and third principles typically require the most design investment. Thermal bridging at wall-to-foundation, balcony, and roof-wall junctions can undermine even well-insulated assemblies if not addressed systematically.
Critically, these five principles must work together as a system; over-investing in one while neglecting another typically prevents certification. Increasingly, leading Canadian Passive Home projects also pair this reduction in operational energy with low-carbon material selection, minimizing embodied carbon alongside heating and cooling demand — part of a broader shift toward addressing a building’s full carbon footprint, not just its energy bills.

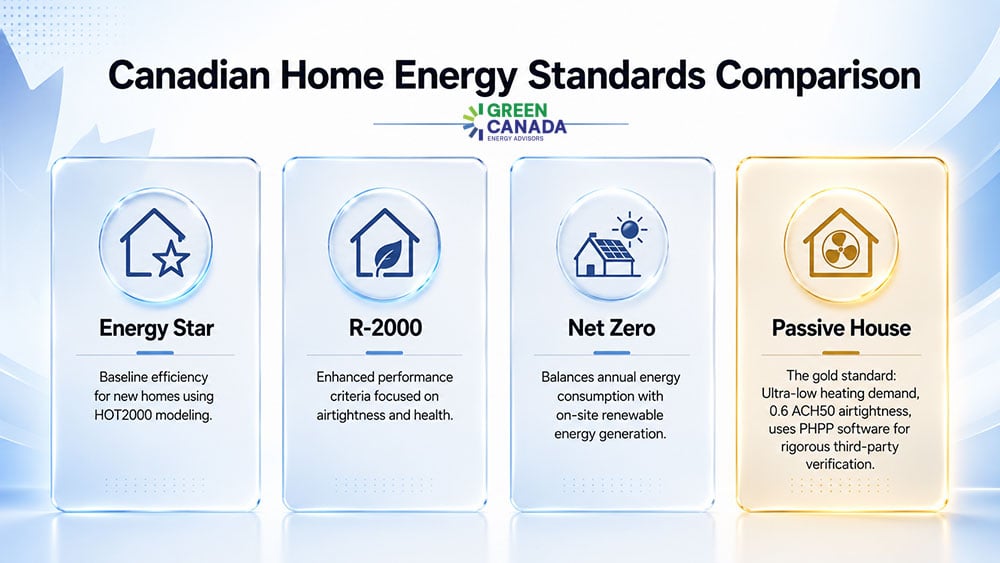

How Passive Home Compares with Other Canadian Standards
One question that comes up frequently among builders and homeowners is how Passive Home relates to other certification programs in Canada. These programs target different outcomes and suit different project goals, budgets, and site conditions.
ENERGY STAR for New Homes and R-2000 are established Canadian standards administered by NRCan that improve on minimum code requirements, using HOT2000 and the EnerGuide rating system, which makes them easier to integrate into a typical design-build process. The CHBA Net Zero Home label focuses on balancing annual energy consumption with on-site generation — typically solar PV — but doesn’t require the demand reduction Passive Home targets. A net-zero home could reach balance through generation alone, without the deep envelope performance and airtightness Passive Home demands.
| Standard | Primary Goal | Modelling Tool | Airtightness Target | Third-Party Certification |
| ENERGY STAR | Above-code efficiency | HOT2000 | Program-specific | NRCan-administered |
| R-2000 | High performance + IAQ | HOT2000 | Verified by blower door | NRCan-administered |
| CHBA Net Zero | Net annual energy balance | HOT2000 | Verified by blower door | CHBA-administered |
| Passive Home Classic | Ultra-low demand | PHPP | ≤ 0.6 ACH50 | PHI-approved certifier |
For existing buildings, EnerPHit offers a retrofit pathway with a modified heating demand target of 25 kWh/m²/yr, reflecting the constraints of an existing structure. The Ken Soble Tower in Hamilton, Ontario — a post-war apartment building retrofitted to EnerPHit standard — was, at completion, among the largest residential EnerPHit-certified retrofits in the world, and remains a widely cited example of deep retrofit at scale.
Is Passive Home the Same as Net Zero in Canada?
No. The two are not interchangeable, even though both are sometimes marketed as “high performance.” Passive Home is demand-driven: it certifies a building only after it shows a deeply reduced heating and cooling load, verified through PHPP modelling and blower door testing, regardless of any renewable generation. CHBA Net Zero is balance-driven: it certifies once annual consumption is offset by on-site renewable generation, even if the envelope is closer to code-minimum. A net-zero home can reach balance through generation alone; a Passive Home cannot — envelope and airtightness targets must be met first.
What Certification Costs and What to Plan For
For builders and homeowners weighing certification, cost is a practical concern. The construction premium for a certified Passive Home over a well-built conventional home varies widely with project size, complexity, location, contractor experience, and envelope strategy. That premium has also been shrinking: as provincial codes (including NBC 2020 and the upcoming NBC 2025 adoption) push baseline construction toward higher energy tiers — with measures like triple-pane windows and increased insulation increasingly required in many jurisdictions — the gap between a code-minimum home and a certified Passive Home is narrower than it was five or ten years ago. Projects that integrate Passive House requirements early in design consistently control costs better than those applying the standard after drawings are already advanced.
The certification process itself involves engaging a PHI-approved certifier, completing the full PHPP model with all junction-level inputs, conducting blower door testing in both directions, and submitting documentation for review. Common mistakes that add cost and complexity include:
- Late-stage consultant involvement
- Underestimating air barrier continuity at penetrations
- Oversizing south-facing glazing without adequate overheating analysis
- Relying on mechanical systems to compensate for envelope shortfalls rather than addressing them in the assembly design
Passive Home Canada maintains a directory of accredited certifiers with Canadian climate zone experience, and engaging one at schematic design is the most effective approach.
Conclusion
Passive Home certification represents one of the most rigorous performance standards available to Canadian builders and homeowners — going further than current codes require in most Canadian jurisdictions, and further than most voluntary programs, in measured demand reduction, thermal comfort, and indoor air quality. Whether the goal is new construction to the Classic standard or a deep retrofit through EnerPHit, certification provides a structured, third-party-verified pathway to a building that performs as designed. As Canadian codes advance toward net-zero energy-ready construction, the building science practices embedded in Passive House are becoming less exceptional and more foundational to where residential construction is headed.
